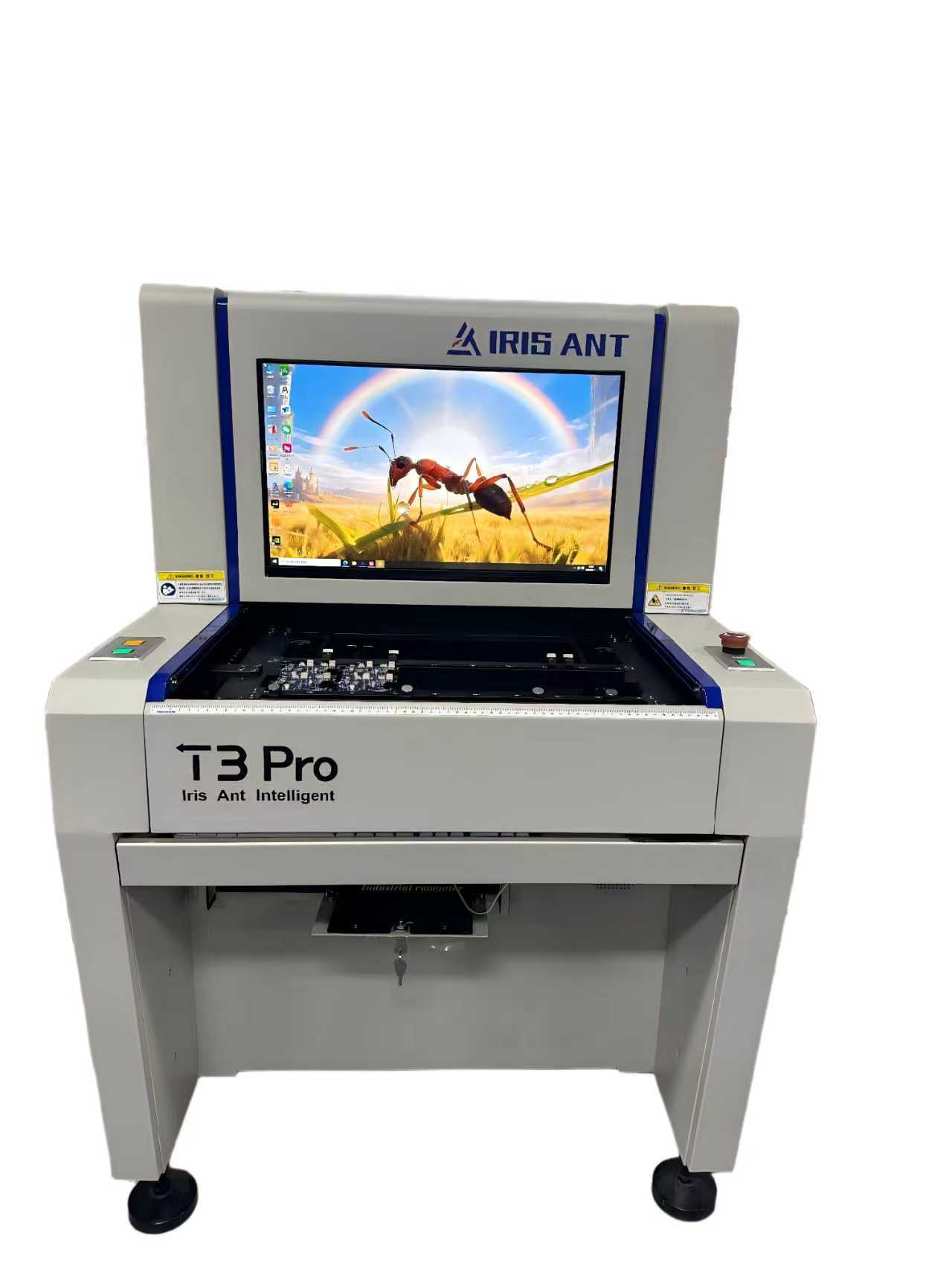

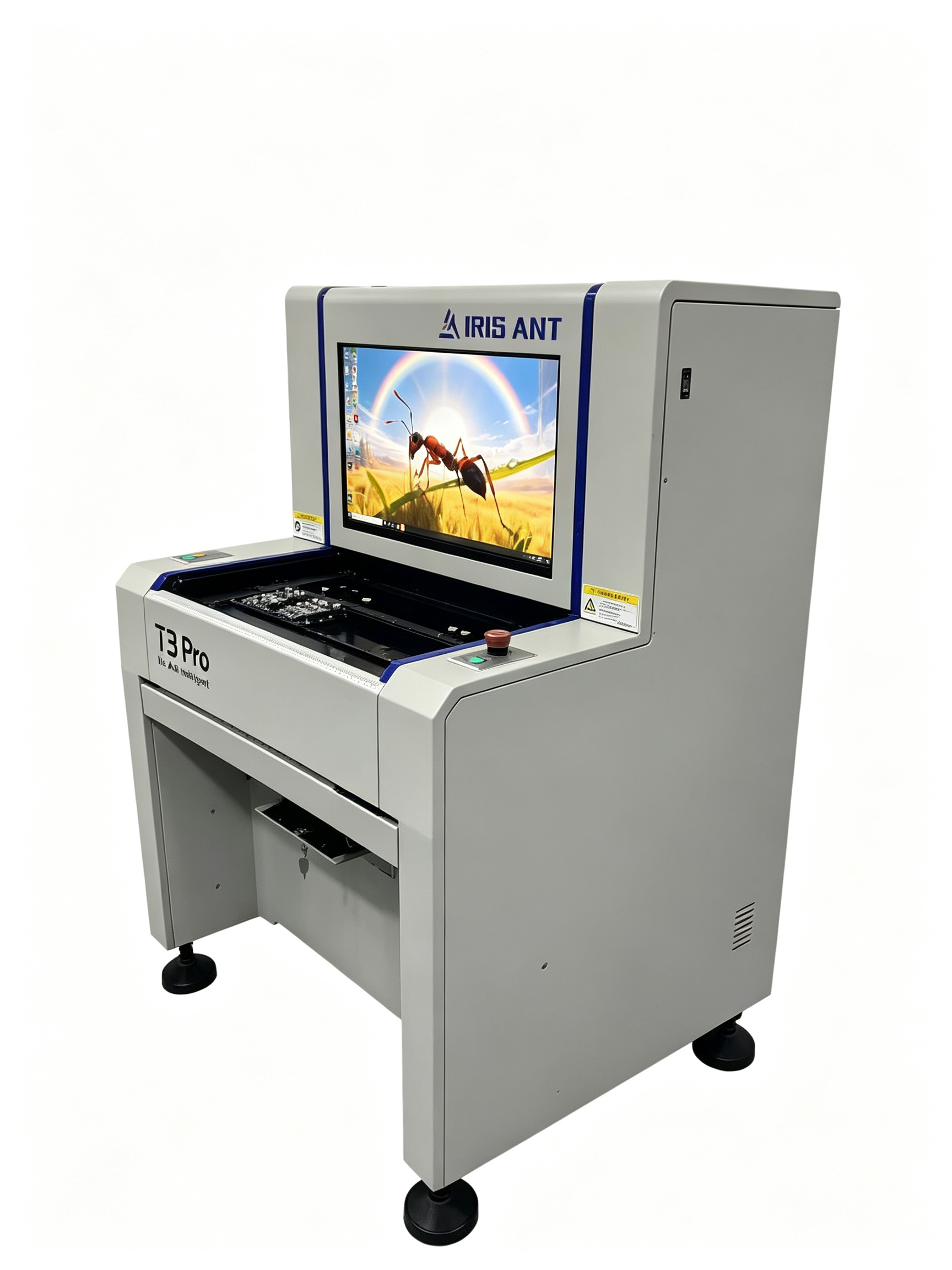

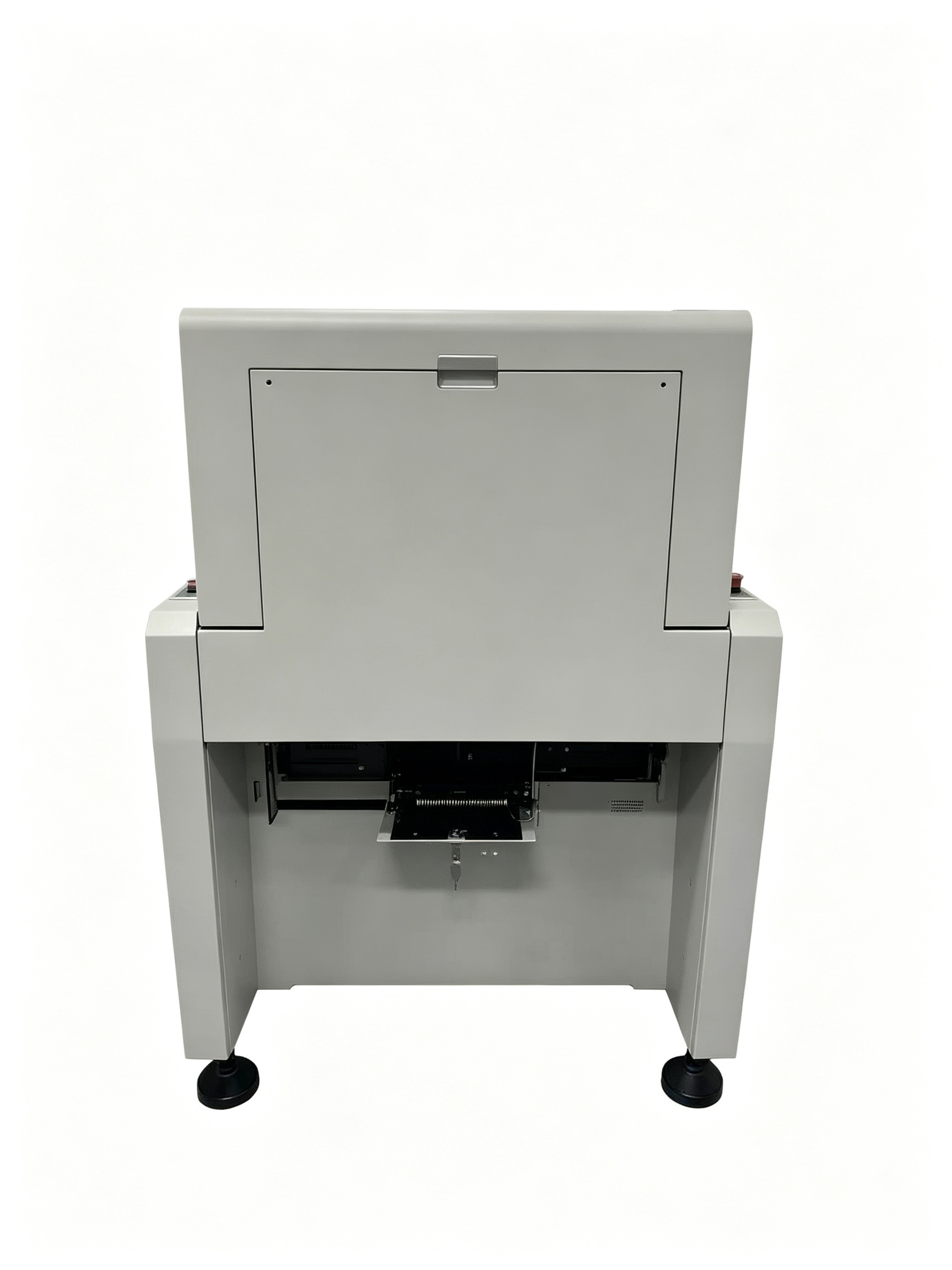

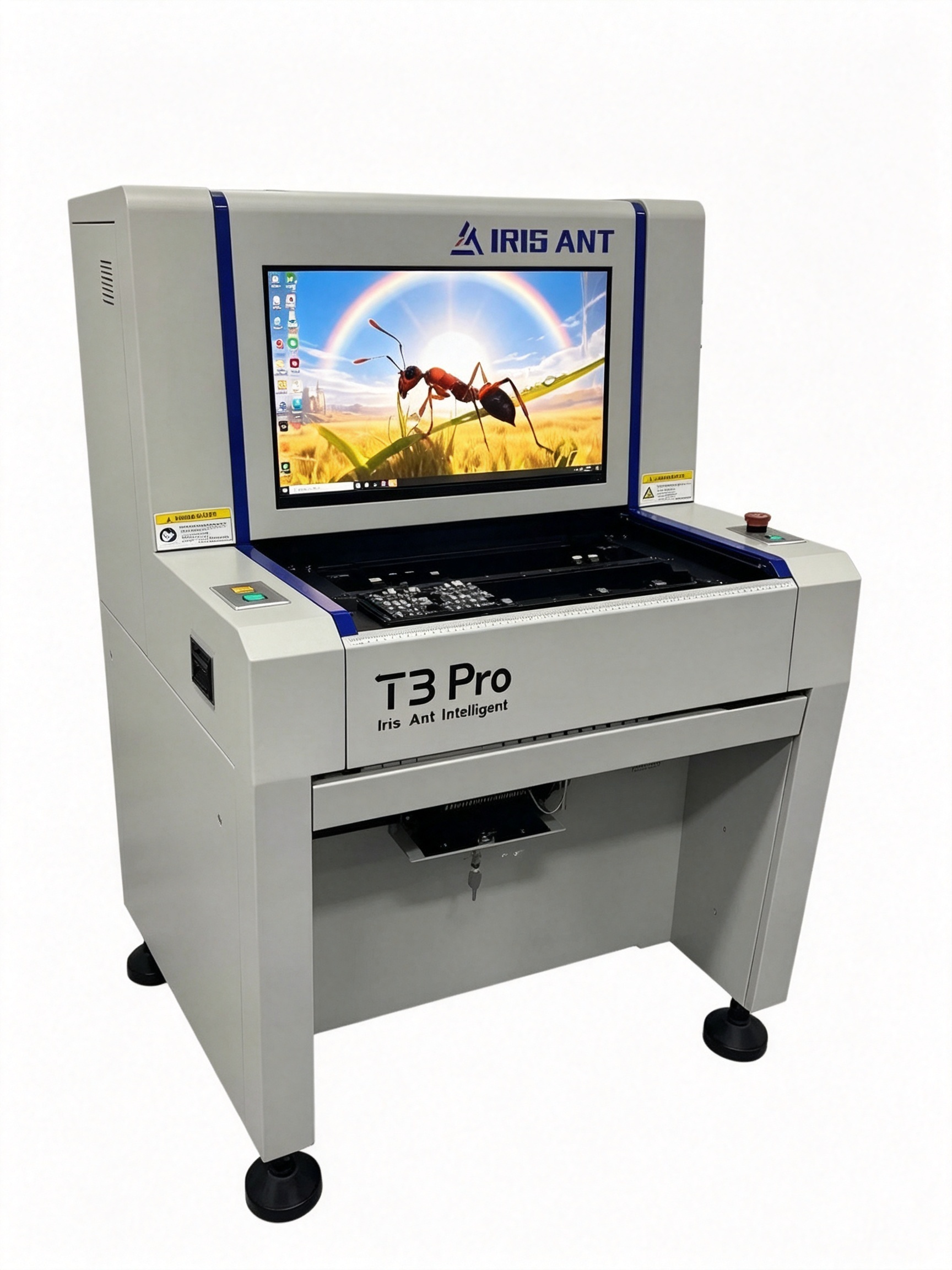

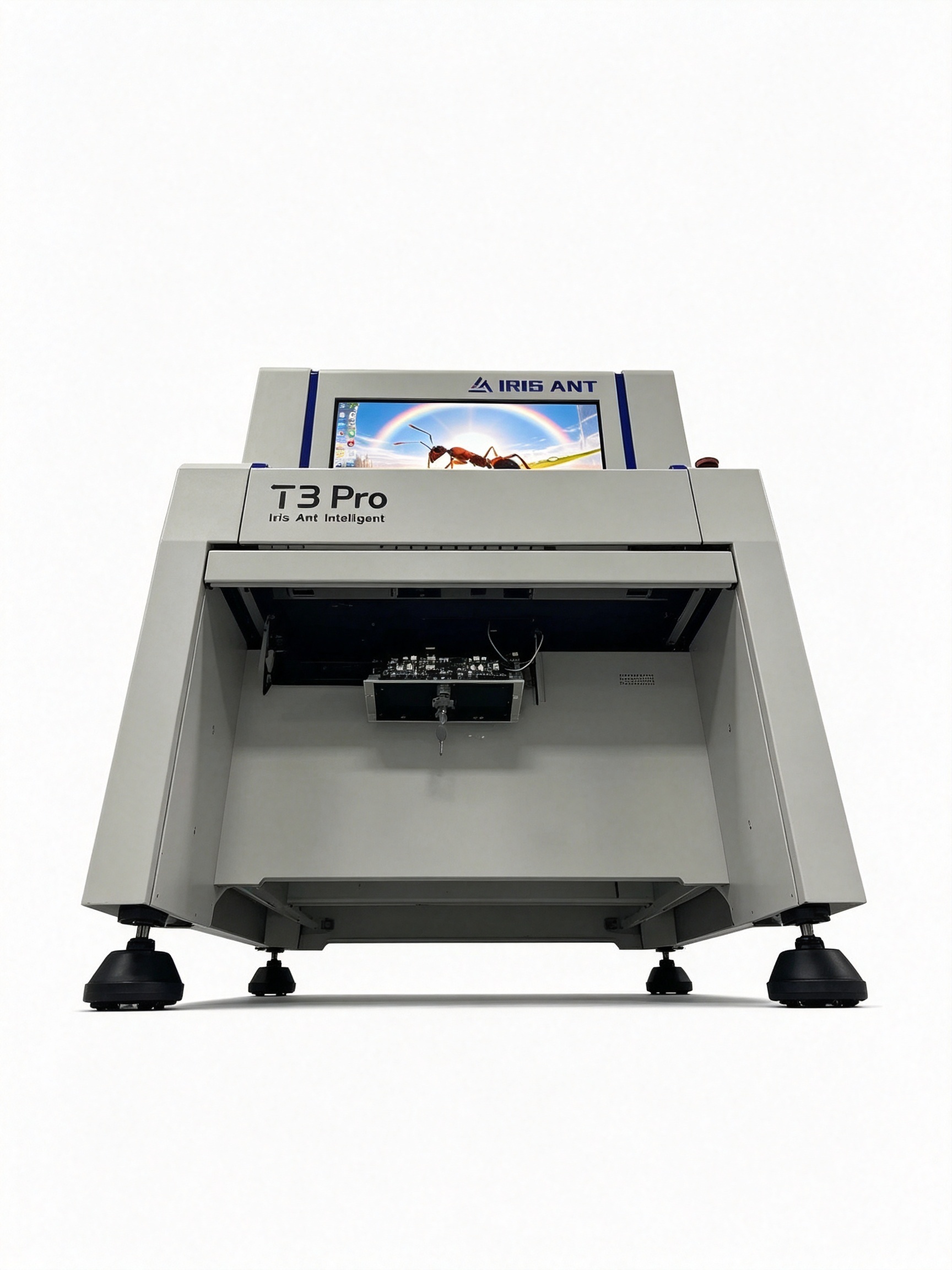

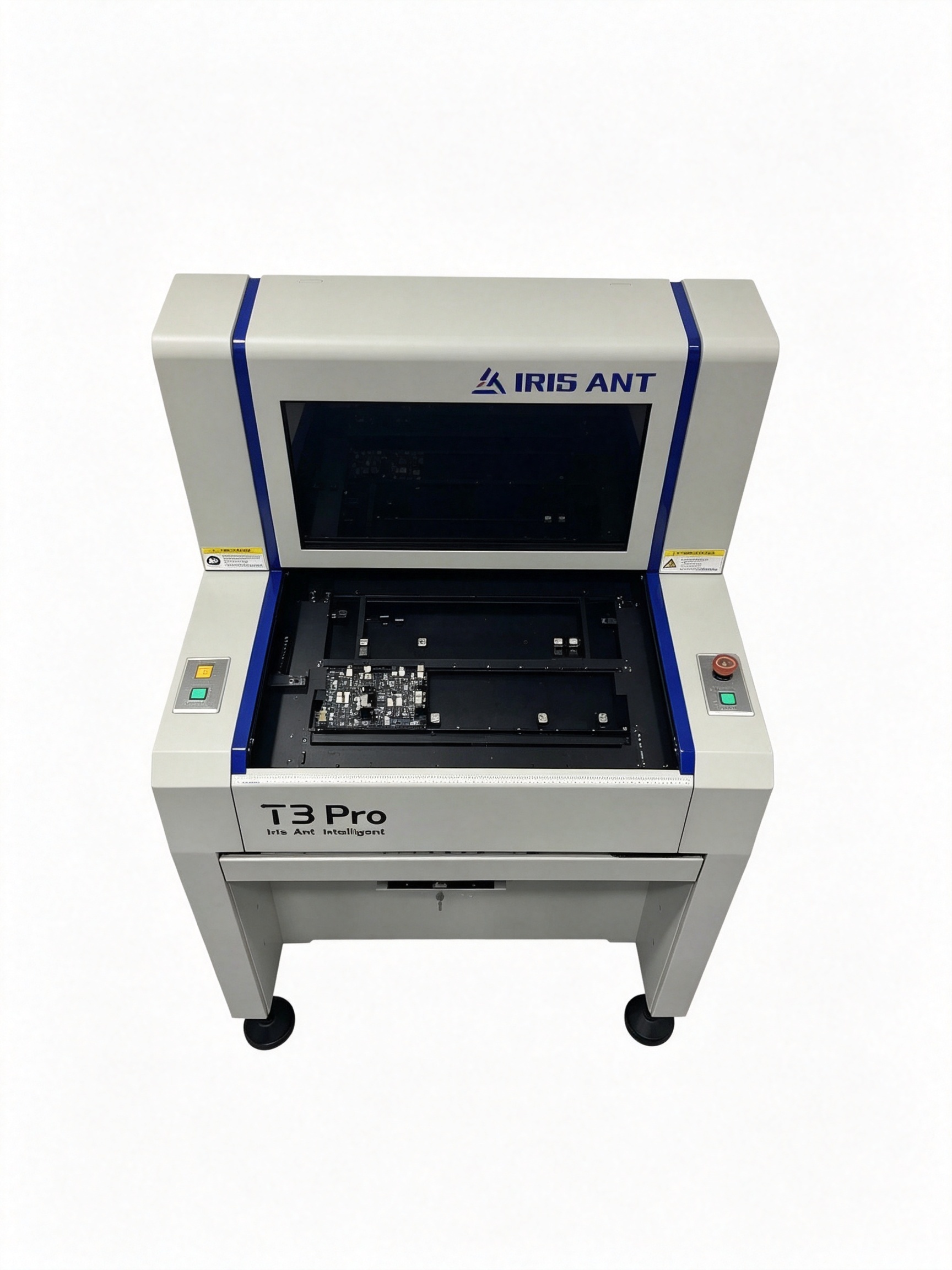

IrisAnt T3 Pro Offline AI AOI

Standard Offline AI Automated Optical Inspection · 15μm / 5MP

Product Description

Functional Positioning for SMT Production

The T3PRO offline ai aoi optical inspection equipment serves SMT manufacturing environments with diverse, low-volume PCB assembly runs. It is designed to detect defects in soldered printed circuit board assemblies offline, after processes such as solder paste application, red glue, and wave soldering. Its AI-driven system simplifies programming by requiring only one good-quality board, eliminating the need for CAD data, which reduces changeover time and streamlines inspection for varied products.

Technical Specifications and Core Features

This system features a detection resolution of 15m using a high-speed 5MP industrial camera combined with multi-spectrum RGB lighting and a parallax-free dual telecentric lens. The AI improves accuracy continuously, lowering false alarms substantially. Operating locally for data security, it supports voice control for hands-free operation. The platform accommodates PCB sizes from 50mm to 330mm and includes automatic clamping and precise positioning, suitable for SMT quality control requirements.

Application Fit and Operational Benefits

The equipment is applicable in factories requiring reliable offline quality inspection of PCB assemblies at small or medium batch scales, with rapid AI programming to support frequent product changes. Its intuitive interface enables operator training within 30 minutes, facilitating adoption in production lines without extensive technical expertise. The system assists businesses in securing product quality post-soldering, improving defect detection accuracy while maintaining data security on-site.

📌 One-Line Positioning: Designed for small-to-medium factories, high-mix low-volume production, and new product introduction (NPI) validation. Programs in 5 minutes with just one good reference board; operators master it in 30 minutes — the best upgrade choice from traditional AOI.

I. Key Selling Points

⚡ 5-Minute AI Programming
No CAD files required — just one good board. Changeover slashed from 3~5 hours to 5 minutes

📉 80% False Call Reduction
Continuous learning optimization improves accuracy over time; reduces manual verification costs

🧠 Tackles Traditional AOI Challenges
AI precisely resolves color-similarity interference, character interference, and DIP soldering classification

🔒 Fully Local Deployment
Data never leaves the factory — core process secrets remain absolutely secure

👆 Zero-Threshold Operation
No professional AOI engineer required; ordinary operators master it in 30 minutes

🎤 Voice Command Control
Hands-free operation improves inspection efficiency

II. Technical Specifications

Model Overview

Item	Specification
Model	IrisAnt T3 Pro
Product Type	Offline 2D PCBA AOI System
Detection Resolution	15μm
Camera	5MP (5 Megapixel)

Vision System

Item	Specification
Camera	5MP High-Speed Industrial Camera
Resolution	15μm
Light Source	Multi-Spectrum Ultra-High-Speed RGB 6-Channel Lighting
Lens	Dual Telecentric Lens (parallax-free, effectively avoids reflection interference)
Inspection Speed	0.238 sec/FOV

PCB Handling Capability

Item	Specification
PCB Size	50×50mm ~ 470×330mm
PCB Thickness	0.5mm ~ 5mm
Max PCB Warpage	Top 25mm / Bottom 10mm
PCB in Process	±3mm
Max PCB Thickness	2.5mm

Hardware Configuration

Item	Specification
X/Y Platform Repeat Positioning Accuracy	±0.01mm
Platform Movement Speed	900mm/s
PCB Clamping	Automatic Clamping
Power Supply & Consumption	AC 220V 50/60Hz / 1KW
Drive System	Panasonic AC Servo Motor + Ground Ball Screw
Graphics Card	Nvidia 3060 12GB
Operating System	Windows 10 Enterprise
CPU	i5-12600 16-Thread
Memory	64GB
Monitor	23.8" LCD
Machine Dimensions (L×W×H)	860 × 1040 × 1318 mm
Machine Weight	345 KG

Inspection Capabilities

Category	Inspection Items
Component Inspection	Missing, reversed, offset, polarity, wrong component, damage, bent leads, foreign objects, pad contamination, excess glue, and entire-board foreign component detection
Solder Joint Inspection	Excessive/insufficient solder, side-standing, solder bridging, tombstoning, insufficient wetting, lifted leads, solder balls, and wave-soldering joint inspection (including DIP)
Special Applications	Solder paste process, adhesive process, and post-wave-soldering PCBA inspection; optional 3D height measurement (component height, lifted lead / insufficient wetting)

Software System

Item	Specification
Inspection Algorithm	AI Embodied Spatial Intelligence Algorithm, Feature Vector Analysis, OCV/OCR for Silk Screen
Programming Modes	AI Smart Programming, CAD Coordinate Import, Auto Component Library Indexing, Smart Panel Recognition
Marking Functions	PCB Full-Board Mark, Panel Mark, Bad Board Mark
Multi-Angle Inspection	0~360°, Accuracy = 1
Human-Machine Interaction	Voice Command Control
Reporting	Automated SPC Statistical Analysis & Data Reports
Remote Control	Offline Programming, Remote Real-Time Debugging, Remote Viewing / Remote Operation Control

Product Advantages

Procurement-Relevant Design Features

The T3PRO offers a high level of inspection precision aligned with industry requirements, with specifications suited for various PCB sizes and thicknesses. Its AI-driven programming process minimizes setup time and reliance on CAD files, which may simplify integration into existing production workflows. Local data deployment enhances compliance with data security policies, which can be a procurement consideration when selecting offline ai aoi optical inspection equipment.

Operational Fit and Business Use Value

This equipment is designed to accommodate small-batch and multi-variant SMT lines through fast programming and changeover. Voice-controlled inspection capabilities reduce operator workload and allow hands-free operation, potentially improving efficiency in the workplace. The machine's user-friendly nature, with short operator training time, supports scenarios involving quick transitions or workforce training. Its characteristics support procurement for manufacturers seeking offline inspection options without network dependency.

III. Application Scenarios

✅ Offline batch or 100% inspection for SMT PCB assembly and soldering quality
✅ PCBA inspection for solder paste, adhesive, and wave-soldering processes
✅ Small-to-medium factories / high-mix low-volume production environments
✅ Rapid programming validation for new product introduction (NPI)
✅ Direct upgrade replacement for traditional AOI systems

IV. Target Industries

Consumer Electronics, Automotive Electronics, Industrial Control, Medical Electronics, Telecommunications, Aerospace & Defense, EMS Contract Manufacturing

V. Purchasing Considerations

Model Selection: Choose T3 Pro (15μm/5MP) for standard inspection; choose T5 Pro (10μm/12MP) for high-precision requirements
PCB Size: Ensure product dimensions ≤ 470×330mm
Minimum Component: 0201 standard; 01005 optional — specify in advance
Facility Requirements: Confirm power (220V/1KW), floor space (860×1040×1318mm), and floor load capacity (345kg)
Optional Features: Barcode scanning, MES integration, 3D height detection — specify requirements upfront
Software & Support: Verify that AI programming, voice control, remote operation, and SPC reporting are fully included; ensure permanent free software upgrades are contractually stated

💡 Model Selection Tip: For high-volume inline full inspection, refer to the T7/T7D inline series; T3 Pro is the most cost-effective entry-level choice for small-to-medium batches and high-mix rapid changeover scenarios.

FAQ

How does the T3PRO Offline AI AOI machine handle different PCB sizes and types?
Our offline ai aoi optical inspection equipment supports PCB sizes from 50-50mm up to 470-330mm, and thicknesses from 0.5mm to 5mm. It is designed for varied soldering processes, including solder paste, red glue, and wave soldering, ensuring versatility for small and medium SMT manufacturing lines.

Can we customize the inspection criteria to fit our specific product requirements?
Yes, the T3PRO allows fast AI programming using a single good reference board, with no CAD files required. This custom setup enables tailored inspection parameters per product to meet your specific quality standards, improving defect detection accuracy and reducing false alarms.

What kind of maintenance or operator training does the T3PRO require?
We provide straightforward operator training that can be completed within 30 minutes due to the user-friendly interface and voice control feature. Routine maintenance involves standard cleaning and verifying camera calibration, ensuring consistent performance of our offline ai aoi optical inspection equipment.

Do you provide support for installation and data security during deployment?
We support full local deployment of the T3PRO system, guaranteeing that your inspection data remains secure onsite without needing network connectivity. Our technical team can assist with setup and ensure smooth integration into your SMT workflow. Contact us now for your custom quote.
