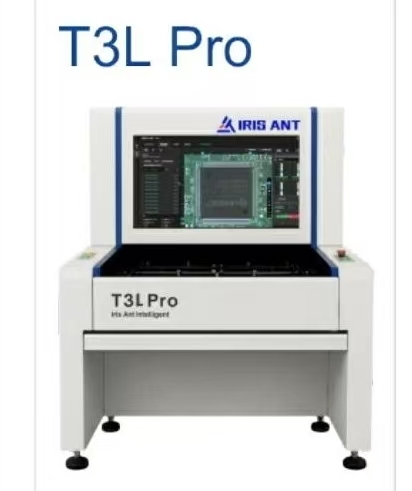

T3L PRO Offline AI AOI Inspection Machine for SMT Line

No.T3L PRO

The IrisAnt T3L Pro is an offline AI AOI specifically designed for “large-format PCB inspection”, supporting boards up to “680×510mm”. Equipped with a 15μm/5MP imaging system, it enables “5-minute AI programming”with just one good reference board, reduces false calls by 80%, and supports voice command control with fully local deployment. Operators can master it in 30 minutes — ideal for large-size, high-mix offline inspection scenarios.

1. Key Selling Points

Large-Format Inspection Capability: Standard inspection range expanded to 680×510mm, rarely seen in offline equipment — ideal for large server boards, LED lighting boards, and large automotive PCBs.
AI-Powered Rapid Programming: Supports 5-minute fast changeover programming without CAD files; uses a "golden board" for modeling, reducing reliance on specialized engineers.
Low False Call Rate & High Accuracy: Equipped with a 15μm/5MP vision system; AI continuously learns to reduce false calls and effectively handles challenges like color-similarity interference.
Data Security & Smart Interaction: Fully local deployment ensures data never leaves the factory; supports voice command control for improved operational convenience.

2. Application Scenarios

Large-Format Board Inspection: Motherboards, industrial backplanes, and other large or complex panelized PCBA.
High-Mix Low-Volume Production: Frequent changeover lines benefit from rapid programming, reducing downtime between runs.
Process Validation & Batch Sampling: Used as a supplementary inspection station after reflow or wave soldering, or for rapid process validation during NPI (New Product Introduction).

3. Target Industries

Consumer Electronics & Telecommunications: Large tablets, base station equipment, etc.
Automotive Electronics: Domain controllers and other large-board applications.
Industrial Control & Medical Devices: Special-shaped and elongated PCB boards.
EMS (Electronics Manufacturing Services): To meet diverse customer product requirements.

4. Purchasing & Selection Tips

Verify PCB Size Limits: Maximum standard size is 680×510mm — provide actual board dimensions before purchase to confirm compatibility.
Evaluate Optional Features: Confirm whether 3D height inspection, barcode traceability, and MES integration require additional purchase; plan budget and interfaces accordingly.
Check Facility Conditions: Verify machine footprint (approx. 860×1040×1318mm) and weight (approx. 345KG); note power requirement: AC 220V 50/60Hz 1KW.
Software & Service Terms: Confirm whether permanent free software upgrades are included, and whether future AI model optimization incurs additional fees.

Get The Latest Quote

Download

View all downloads

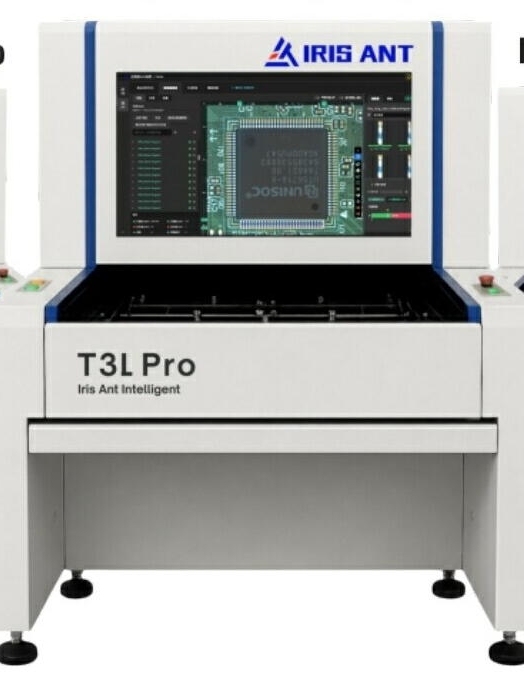

IrisAnt T3L Pro Offline AI AOI

Large-Format Offline AI Automated Optical Inspection · 15μm / 5MP

Product Description

Functional Positioning for SMT Offline Inspection

The T3L PRO machine serves as an offline AI optical inspection solution aimed at SMT production environments handling large-format PCBs. It is suited to manufacturers requiring inspection of boards up to 680×510mm outside the production line, beneficial for low-volume, high-mix scenarios, or supplementary quality checks without dependence on CAD data. The voice command operation supports efficient manual use, enabling faster operator adoption.

Technical Specifications and Capabilities

Equipped with a 15μm/5MP high-speed vision system, this offline optical inspection equipment offers precise defect detection. AI-driven programming completes in just five minutes via a single good reference board, reducing false calls significantly. The system's ±0.01mm positioning accuracy and high-speed platform movement facilitate thorough inspection. Full local deployment ensures data security, operating on Windows 10 Enterprise with a 23.8" display for user interface.

Practical Application and Integration

This offline inspection device supports diverse SMT line applications such as batch sampling, solder paste and reflow quality checks, and NPI validation. Its ability to inspect thick or warped PCBs and complex panelized assemblies suits industrial contexts like motherboard or industrial backplane production. It also functions well as a complementary station alongside inline modules, enabling flexible quality control measures within manufacturing workflows.

📌 One-Line Positioning: Designed for large-format PCB inspection (up to 680×510mm), ideal for small-to-medium factories, high-mix low-volume production, and NPI validation. Programs in 5 minutes with just one good reference board — the best upgrade choice from traditional AOI for oversized boards.

I. Key Selling Points

📐 Large-Format Inspection
Supports PCB up to 680×510mm — ideal for server boards, LED lighting boards, and large automotive PCBs

⚡ 5-Minute AI Programming
No CAD files required — just one good board. Changeover slashed from 3~5 hours to 5 minutes

📉 80% False Call Reduction
Continuous learning optimization improves accuracy over time; reduces manual verification costs

🧠 Tackles Traditional AOI Challenges
AI precisely resolves color-similarity interference, character interference, and DIP soldering classification

🔒 Fully Local Deployment
Data never leaves the factory — core process secrets remain absolutely secure

👆 Zero-Threshold Operation
No professional AOI engineer required; ordinary operators master it in 30 minutes

🎤 Voice Command Control
Hands-free operation improves inspection efficiency

📊 SPC & MES Integration
Built-in statistical analysis and open API for seamless system connectivity

II. Technical Specifications

Model Overview

Item	Specification
Model	IrisAnt T3L Pro
Product Type	Offline 2D PCBA AOI System — Large-Format Version
Detection Resolution	15μm
Camera	5MP (5 Megapixel)
Max PCB Size	680 × 510 mm — unique in its class

Vision System

Item	Specification
Camera	5MP High-Speed Industrial Camera
Resolution	15μm
Light Source	Multi-Spectrum Ultra-High-Speed RGB 6-Channel Lighting
Lens	Dual Telecentric Lens (parallax-free, effectively avoids reflection interference)
Inspection Speed	0.238 sec/FOV

PCB Handling Capability

Item	Specification
PCB Size	50×50mm ~ 680×510mm
PCB Thickness	0.5mm ~ 5mm
Max PCB Warpage	Top 25mm / Bottom 10mm
PCB in Process	±3mm
Max PCB Thickness	2.5mm

Hardware Configuration

Item	Specification
X/Y Platform Repeat Positioning Accuracy	±0.01mm
Platform Movement Speed	900mm/s
PCB Clamping	Automatic Clamping
Power Supply & Consumption	AC 220V 50/60Hz / 1KW
Drive System	Panasonic AC Servo Motor + Ground Ball Screw
Graphics Card	Nvidia 3060 12GB
Operating System	Windows 10 Enterprise
CPU	i5-12600 16-Thread
Memory	64GB
Monitor	23.8" LCD
Machine Dimensions (L×W×H)	860 × 1040 × 1318 mm
Machine Weight	345 KG

Inspection Capabilities

Category	Inspection Items
Component Inspection	Missing, reversed, offset, polarity, wrong component, damage, bent leads, foreign objects, pad contamination, excess glue, and entire-board foreign component detection
Solder Joint Inspection	Excessive/insufficient solder, side-standing, solder bridging, tombstoning, insufficient wetting, lifted leads, solder balls, and wave-soldering joint inspection (including DIP)
Special Applications	Solder paste process, adhesive process, and post-wave-soldering PCBA inspection; optional 3D height measurement (component height, lifted lead / insufficient wetting)

Software System

Item	Specification
Inspection Algorithm	AI Embodied Spatial Intelligence Algorithm, Feature Vector Analysis, OCV/OCR for Silk Screen
Programming Modes	AI Smart Programming, CAD Coordinate Import, Auto Component Library Indexing, Smart Panel Recognition
Marking Functions	PCB Full-Board Mark, Panel Mark, Bad Board Mark
Multi-Angle Inspection	0~360°, Accuracy = 1
Human-Machine Interaction	Voice Command Control
Reporting	Automated SPC Statistical Analysis & Data Reports
Remote Control	Offline Programming, Remote Real-Time Debugging, Remote Viewing / Remote Operation Control

Product Advantages

Procurement-Relevant Design Considerations

The T3L PRO’s capacity for large-format PCBs up to 680×510mm and support for varying thickness (0.5-5mm) meets OEM and distributor requirements for handling diverse PCB types. Its local AI processing reduces concerns about data privacy, which can be critical in sensitive manufacturing supply chains. The voice command feature and automated clamping contribute to operational ease without additional manual tooling.

Operational Fit and Business Use Value

This offline optical inspection equipment’s rapid AI programming reduces setup time, suitable for low-volume or varied SMT runs common in ODM/OEM projects. Its compatibility with SPC and MES systems supports integration into established factory data environments. The system’s packaging and quality control are designed to align with standard industrial equipment delivery and deployment expectations.

III. Application Scenarios

✅ Offline batch or 100% inspection for large-format SMT PCB assembly and soldering quality
✅ PCBA inspection for solder paste, adhesive, and wave-soldering processes
✅ Small-to-medium factories / high-mix low-volume production environments with large boards
✅ Rapid programming validation for new product introduction (NPI)
✅ Direct upgrade replacement for traditional AOI systems handling oversized PCBs

IV. Target Industries

Consumer Electronics, Automotive Electronics, Industrial Control, Medical Electronics, Telecommunications, Aerospace & Defense, EMS Contract Manufacturing

V. Purchasing Considerations

Model Selection: Choose T3L Pro for large-format PCB inspection (up to 680×510mm); choose T5 Pro (10μm/12MP) for high-precision standard-size needs
PCB Size: Ensure product dimensions ≤ 680×510mm — provide actual board drawings for verification
Minimum Component: 0201 standard; 01005 optional — specify in advance
Facility Requirements: Confirm power (220V/1KW), floor space (860×1040×1318mm), and floor load capacity (345kg)
Optional Features: Barcode scanning, MES integration, 3D height detection — specify requirements upfront
Software & Support: Verify that AI programming, voice control, remote operation, and SPC reporting are fully included; ensure permanent free software upgrades are contractually stated

💡 Model Selection Tip: For high-volume inline full inspection, refer to the T7/T7D inline series; T3L Pro is the only offline AI AOI offering 680×510mm large-format support, making it the ideal choice for oversized board detection.

— Shenzhen IrisAnt Intelligent Technology Co., Ltd —

FAQ

What PCB sizes can the T3L PRO Offline AI AOI Inspection Machine handle?
Our T3L PRO supports inspection of large-format PCBs up to 680 × 510 mm, accommodating a wide range of SMT board sizes for diverse production needs. This capability ensures thorough quality control for oversized assemblies using our offline AI AOI optical inspection equipment.

Is internet connectivity required for operating the T3L PRO system?
We designed the T3L PRO to run fully locally with all AI processing performed on-site. This means no internet connection is needed, ensuring complete data privacy and security while maintaining fast, reliable inspection using our AI AOI optical inspection equipment.

Can the T3L PRO be integrated into existing SMT production workflows?
Yes, our machine supports integration with SPC and MES systems to fit smoothly into your production line. This compatibility allows the T3L PRO to serve as an efficient offline inspection station complementing your existing quality control processes.

What support do you offer for system setup and training?
We provide comprehensive guidance to ensure operators can master the T3L PRO within 30 minutes. Our team is available to assist with installation, calibration, and voice command training to optimize your use of our offline AI AOI optical inspection equipment.
