Product Description

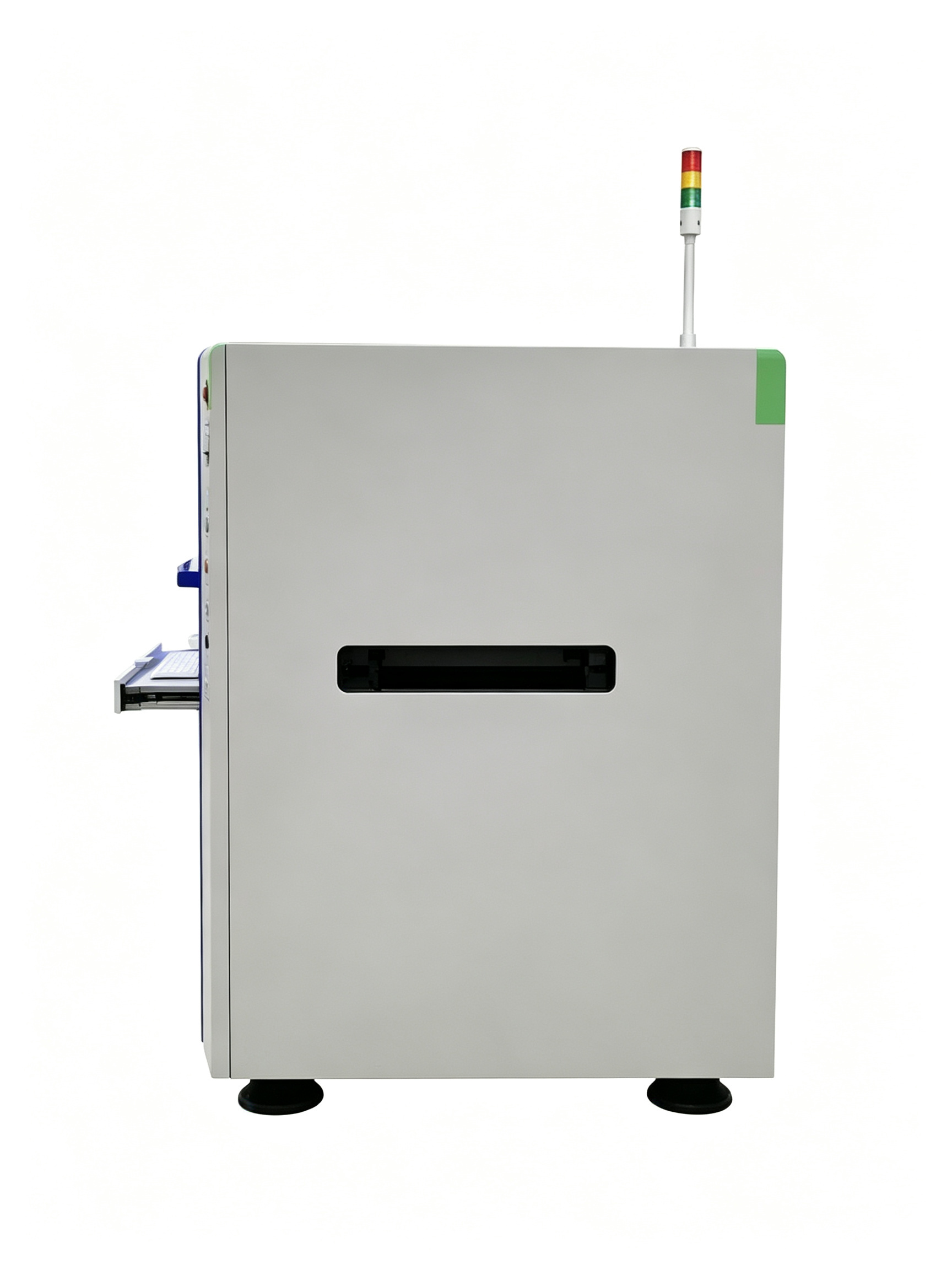

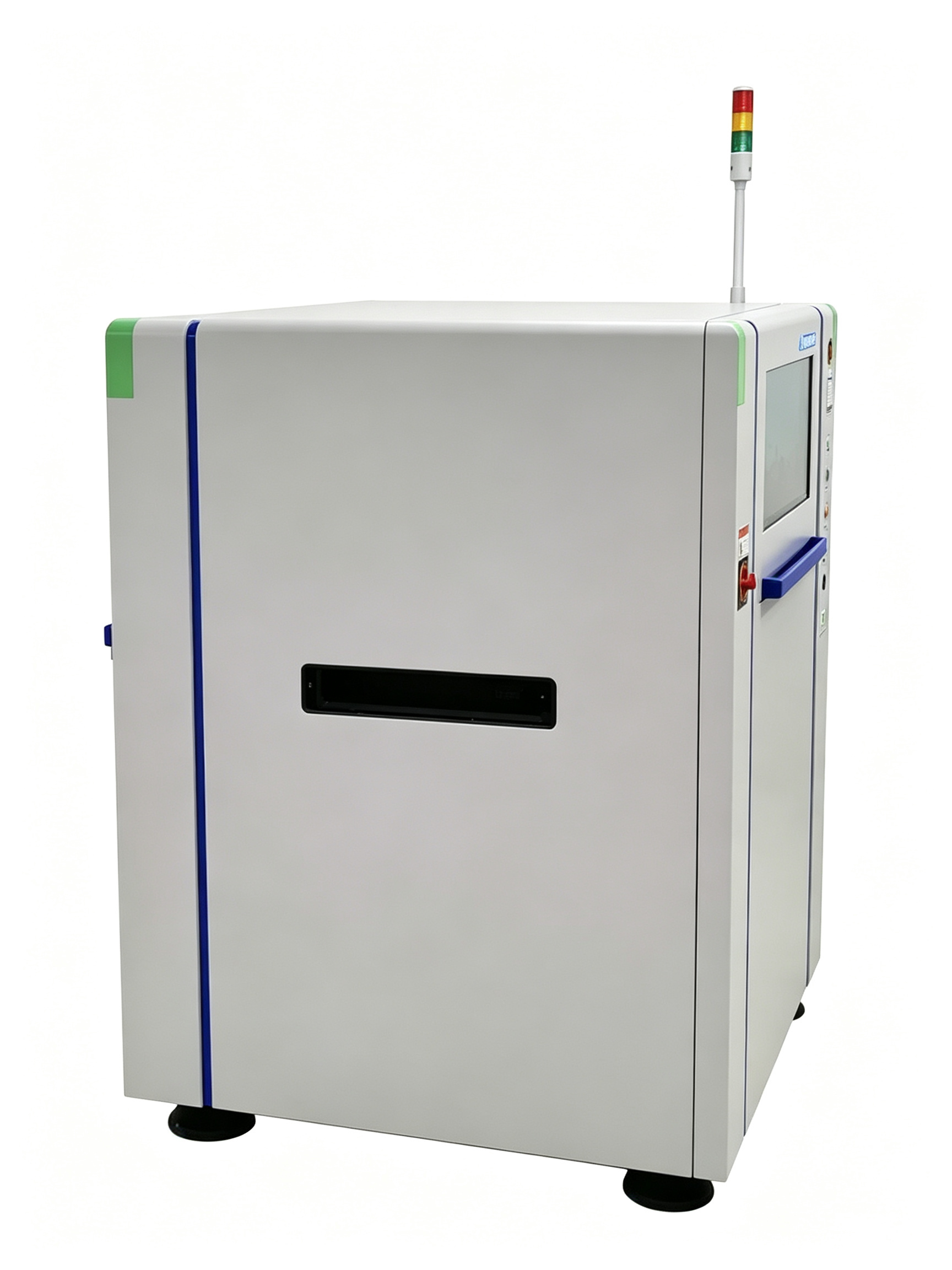

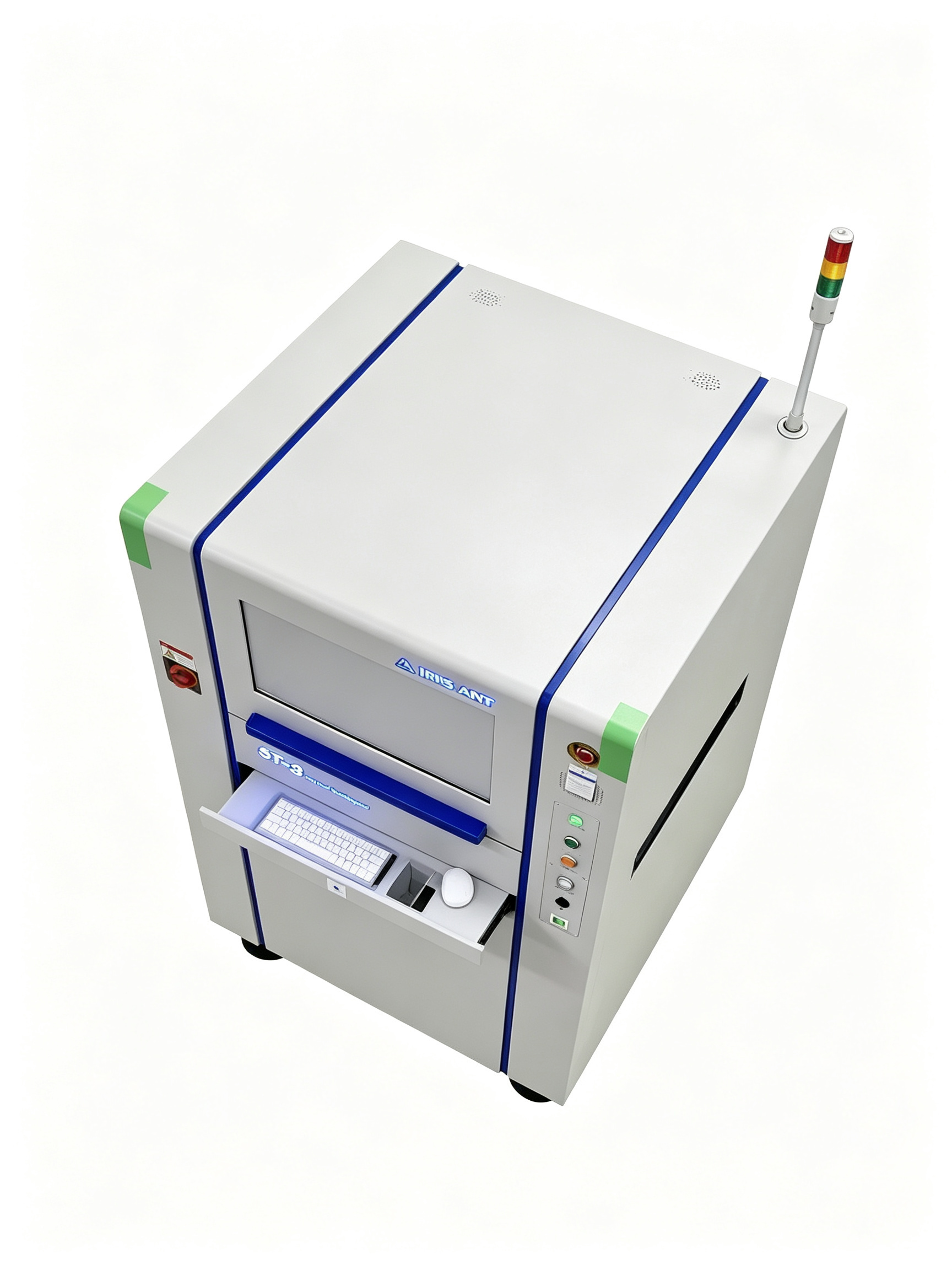

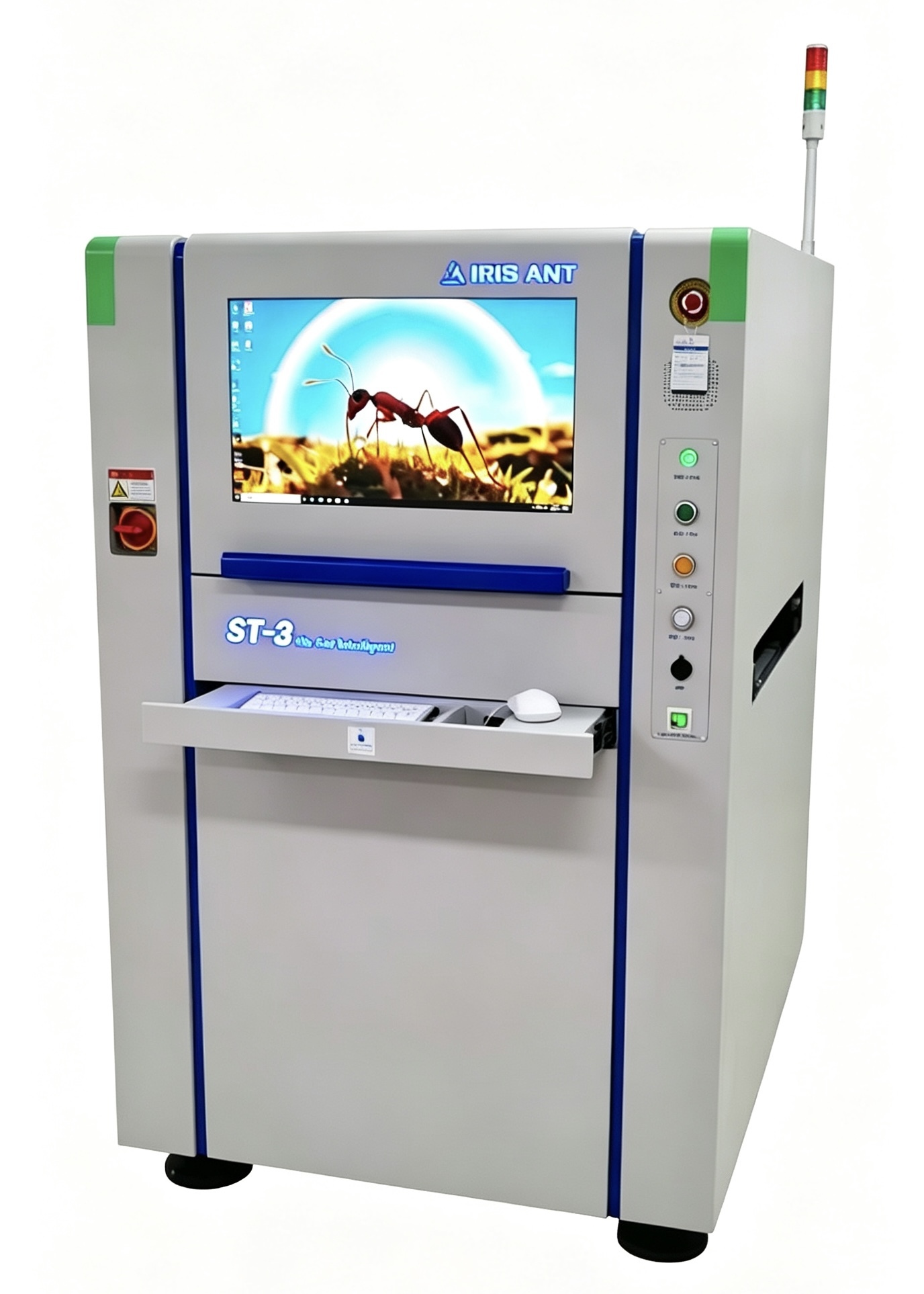

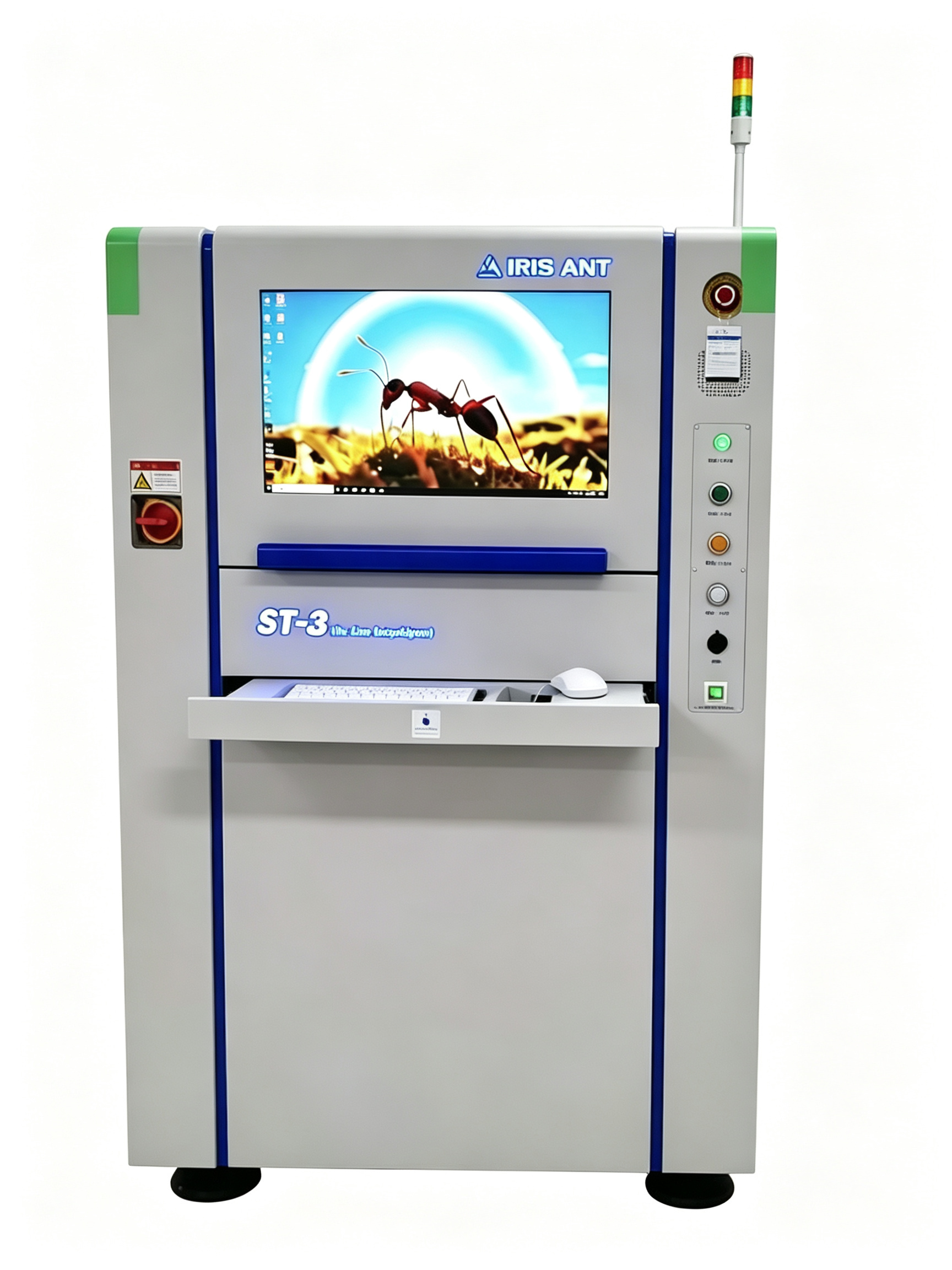

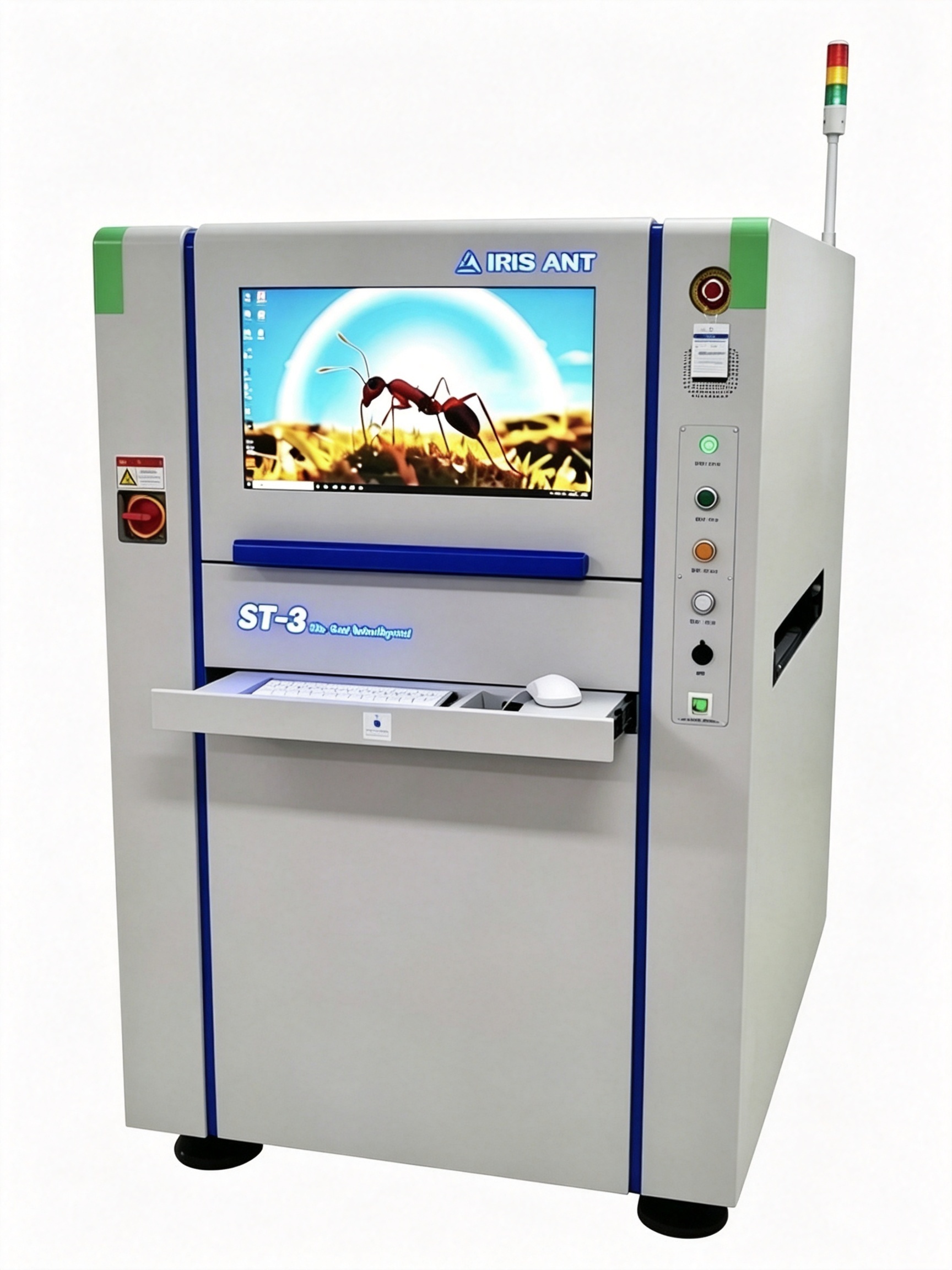

The ST-3 digital AI SPI Inspection Machine for SMT Line is designed for manufacturers and assembly operations requiring precise solder paste inspection after printing. It targets SMT production lines aiming to ensure correct solder paste volume, height, and alignment through a 3D inspection process. This system suits enterprises focusing on small component assembly and handling warped or flexible PCBs, enabling quality control in complex manufacturing environments.
Utilizing sinusoidal white light projection combined with a 12-megapixel industrial CCD, the ST-3 offers 3D solder paste volume measurement with repeatability accuracy below 10%. Its non-contact structured light grating avoids mechanical wear, supporting inspection areas up to 500×600 mm. The system provides quick programming and line switching times of 5 and 3 minutes respectively, incorporates 2-axis dynamic profiling to compensate for PCB warping, and operates on a Windows 10 platform with integrated SPC analysis and reporting capabilities.
The machine is adaptable to various SMT production scenarios requiring rapid changeovers and thorough paste inspection. It fits environments with multiple product variants or small batch sizes, where high-density PCBs or flexible printed circuits are common. By enabling consistent solder paste inspection on warped substrates and supporting optional barcode scanning for traceability, it addresses practical manufacturing challenges in SMT assembly lines where accuracy and flexibility are essential.
The ST-3 digital AI SPI Inspection Machine features a non-contact, programmable structured light measurement approach that limits mechanical wear, reducing maintenance requirements. Its quick programming and line changeover times support small-batch and multi-variant production needs. The inclusion of lifetime free software upgrades and compatibility with Gerber formats can simplify integration and long-term sourcing considerations. These elements suit OEM/ODM buyers and production line managers seeking stable inspection solutions for SMT manufacturing.
This inspection system accommodates PCBs with warping and small components through dynamic profiling and high-resolution imaging, aligning with manufacturers’ quality control demands. Integrated SPC functions and optional barcode scanning contribute to process monitoring and traceability, which are important in regulated or high-mix facilities. The machine’s dimensions, power, and air supply requirements are typical for industrial SMT lines, allowing straightforward installation within standard production environments.
| NO | Equipment System | Item | Specification Parameter |
|---|---|---|---|
| 1 | Vision System | Inspection Principle | Sinusoidal White Light Projection PMP Inspection |
| Industrial CCD Camera | 12 Megapixel | ||
| Resolution | 10 μm | ||
| 3D Projection Head | Projects periodic changing patterns; combined with CCD camera to obtain true 3D images. The 3D projection head is provided with lifetime free replacement service (for first-time customers only). | ||
| Black & White 2D Image | Standard configuration, convenient for operators to confirm defects | ||
| Color 2D Image | Standard configuration, capable of generating color 2D images, more intuitive than black & white 2D images | ||
| Light Source | Four-color LED light source (Red/Blue/Green/White) | ||
| 2 | Mechanical System | Rail Mode | Single Rail |
| PCB Inspection Area Range (L×W) | 50×50 ~ 500×600 mm | ||
| X-Y Mechanism | Inspection head moves along X-axis and Y-axis directions; PCB remains stationary in both X and Y directions | ||
| Fixed Side of Guide Rail | Front guide rail fixed | ||
| Guide Rail Width Adjustment Method | Automatic and manual adjustment modes | ||
| PCB Positioning and Clamping Method | Edge positioning and clamping | ||
| Guide Rail Height | 900±40 mm | ||
| PCB Process Edge Clamping Width | 3 mm | ||
| PCB Transfer Direction | R→L or L→R; flow direction can be switched with one click in software, simple and convenient operation | ||
| 3 | Software System | System Software Operating Platform | Windows 10 64-bit Enterprise Edition |
| Software Language | Chinese / English | ||
| Programming Software | Gerber (RS-274X, RS274D), CAD | ||
| Programming Time | < 5 minutes | ||
| Program Fine-tuning Time | < 5 minutes | ||
| Line Changeover Time | < 3 minutes | ||
| Panelized PCB Program | Easy panelized PCB program creation (including positive and negative boards) | ||
| Programming Mode & Data Input Type | SPI program supports stencil files, Gerber (RS274X, RS274D formats); manual window creation programming also supported | ||
| System Diagnosis | Standard configuration | ||
| Ease of Operation | User-friendly Windows-style interface for convenient operation | ||
| SPC Data Collection Analysis & Process Monitoring Software | Powerful SPC functions with complete data collection, analysis and management capabilities. Supports Production Trend, Xbar Chart, R Chart, Cp, Cpk and other related tests. Records quantified data of each solder joint on every PCB, including volume, area, height and offset. Supports spreadsheet report output, defect cause analysis charts, full-board numerical images, normal distribution charts, individual component test curve analysis, real-time defect image output and abnormal data/image storage. | ||
| Network Technology Requirements | Supports TCP/IP protocol and real-time image transmission without affecting operation | ||
| 4 | Computer System | Computer Type | High-performance computer |
| CPU | Intel i7 | ||
| Memory Capacity | 32 GB Memory | ||
| Hard Disk Capacity | 1 TB HDD | ||
| Operating System | Windows 10 64-bit Enterprise Edition | ||
| Monitor | 24" LCD Monitor | ||
| Input Device | Mouse, Keyboard | ||
| 5 | Machine Information | Equipment Dimensions | W1003 × D1430 × H1480 mm |
| Air Supply Requirement | 4–6 Bar | ||
| Weight (KG) | 1000 KG | ||
| Power Supply | 220V, 10A | ||
| Power Consumption (Startup/Normal) | Startup: 2.5 kW / Normal Operation: 2 kW | ||
| Working Air Pressure | 5 L/min | ||
| Floor Load Requirement | 450 kg/m² | ||
| Grounding Resistance Requirement | Grounding wire required | ||
| Standard SMEMA Interface | Equipped, with OK/NG board output signals | ||
| Safety Protection System | Equipped with complete safety indicators and interlock system | ||
| 6 | Other Items | Barcode Scanning Function | Optional; external high-speed barcode device available, supporting parent board and child board identification |
| Automatic / Manual Inspection Function | Both modes available | ||
| Technical Documentation | Complete technical, operation and maintenance manuals (including electronic files) and software installation disk provided | ||
| Software Upgrade Service | Permanent and free software upgrade service provided |
