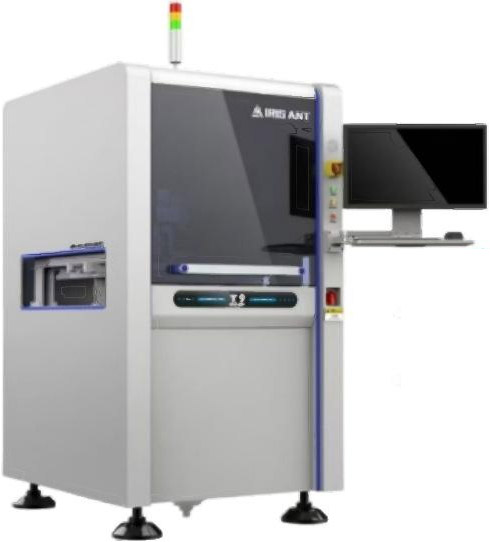

| Equipment parameters | |
|---|---|
| Belt line height | 900 ± 20mm (height of the conveyor track above the ground) |
| drive system | X/Y/Z, AC servo motor |
| Screw accuracy | ±0.01mm |
| Equipment flow direction | Left to right, right to left (customized according to requirements) |
| power supply | AC220V, 50/60Hz international power plug |
| power | 8.8KW |
| gas source | 4-6Par |
| size | L1290 * W1710 * H1990 (excluding three color lights and other accessories) |
| Optical imaging system | |
| Upstream camera | 20MP high-speed black and white camera+telephoto lens |
| FOV | 60mmx60mm |
| optical resolution | 14um |
| Check speed (range) | >10cm²/s |
| Maximum 3D height measurement range | 25mm |
| 3D technology | Four directional structured light projection |
| detection parameters | |
| lighting source | RGBW four-color circular shadowless light source |
| Component defects | Missing parts, stele, side standing, polarity, misalignment, wrong parts, damaged parts, flipping, warping, foreign objects, floating welding, silk screen printing |
| solder joint defect | Climbing tin height, climbing tin volume%, excessive tin, insufficient tin, bridging, pin lifting, scratching/sticking tin on the surface of the gold finger |
| Minimum component size | 0603(mm)/0201(inch) |
| High precision | ± 6um (using calibration tools) |
| Measurable thickness | 0.6-5mm |
| Maximum size | 500 × 330mm (double track) |
| minimum size | 50x50mm |
| Component height | Front 50mm, back 40mm |
